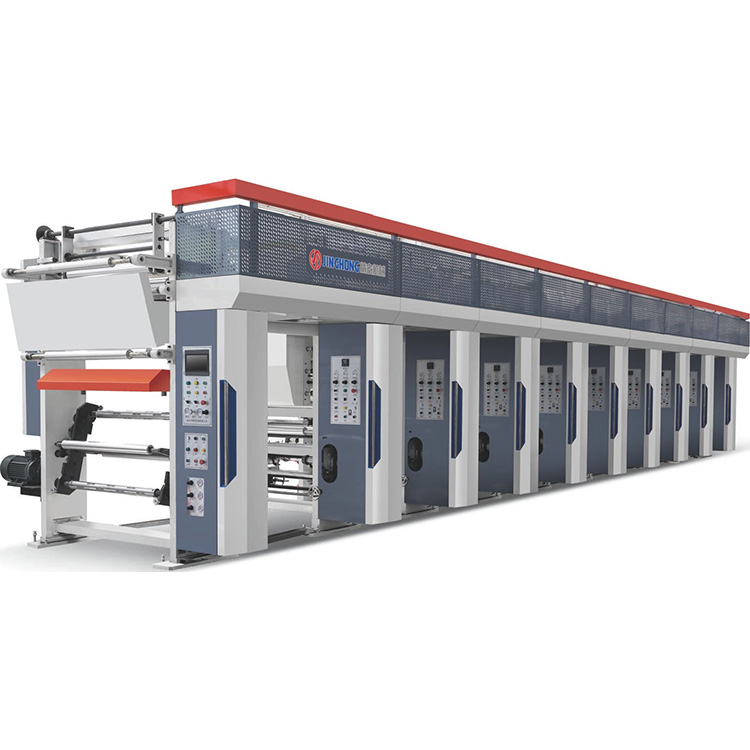

JHAY-WD Three Motor Rotogravure Printing Machine



JHAY-WD Three Motor Rotogravure Printing Machine

Equipment Description
This machine is used for printing BOPP, PE, PET, PVC, paper and other roll type material, adopt advanced technology three machine tension control system, dynamic synchronous difference complement system tension and zero speed difference automatically change the volume action procedure of all by the central PLC control completed, HanXian touch man-machine interface to set parameters and modification; Has the secondary return air function of seal drying oven, the unique round hole array wind ceremonies hot air drying, high speed working status automatically change the volume; The high quality material, high precision processing guarantee the machine excellent rigidity and work stability, people-oriented design concept for the operator to provide sufficient convenient..

Inquiry Contact us

Product Description

Equipment Description

This machine is used for printing BOPP, PE, PET, PVC, paper and otherrolltype material, adopt advanced technology three machine tension control system, dynamic synchronous difference complement system tension and zero speed difference automatically change the volume action procedure of all by the central PLC control completed, HanXian touch man-machine interface to set parameters and modification; Has the secondary return air function of seal drying oven, the unique round hole array wind ceremonies hot air drying, high speed working status automatically change the volume; The high quality material, high precision processing guarantee the machine excellent rigidity and work stability, people-oriented design concept for the operator to provide sufficient convenient..

Specification:
Model	JHAY-B-650	JHAY-B-850	JHAY-B-1050	JHAY-B-1250
No.of colors	1-12 colors	1-12 colors	1-12 colors	1-12 colors
Printing cylinder diameter	100-320mm	100-320mm	100-320mm	100-320mm
Printing width	600mm	800mm	1000mm	1200mm
Rewind &Unwind diameter	600mm	600mm	600mm	600mm
Printing speed	100-150m/min	100-1530m/min	100-150m/min	100-150m/min
Register accuracy	≤0.10mm	≤0.10mm	≤0.10mm	≤0.10mm
Dry form	electric, steam, thermal oil heating	electric, steam, thermal oil heating	electric, steam, thermal oil heating	electric, steam, thermal oil heating
Total power	162kw	170kw	178kw	186kw
Weight	14000kg	15000kg	16000kg	17000kg
Dimension	1450031502580mm	1450033502580mm	1450035502580mm	1450037502580mm
Material	BOPP, PET, CPP, Nylon, PVC shrink, PE, PET shrink, paper , Aluminum Foil
Application	PE bag,shrink label,snack bags,yogurt cup,medicine,candy wrapper,drinks
Suitable Industry	Flexible packaging industry (food packaging company,pharmaceutical company Shrink sleeve industry (decoration bottles,cans,glassed) Optical-electronics industry （computer related 3C products and packaging) Transfer products (house architecture,car)

Characteristic USE

This machine is suitable for continuous ,multi-color printing or rolling material in good printing performance such as tobacco packing,paper,non woven,PP woven,aluminum foil,BOPP,PET,NYLON,PVC,PE and so on.

FEATURE

1. The machine is three motors system control.it can choose five motors or seven motors.

2. Computer registering devices and static camera examining gaphics.

3. Double reel stations inside, non-stop splicing.

4. Adopting variable frequency motor control for main driver, unwinder and feeding.

5. Unwinder auto tension controller and rewinding by two variable frequency motors.

6. Shaft less cylinder loading.Pneumatic backpressure moving doctor blade, three side ajdusting and double air cylinder pressure.

7. Sealed type oven, outside heating system, Hot-air circulation system, auto constant temperature control system.

8. Adopting aluminum alloy guide roll after anode oxidation processing and in balance

9. High-accuracy gear transmission box, adopting patented technique.

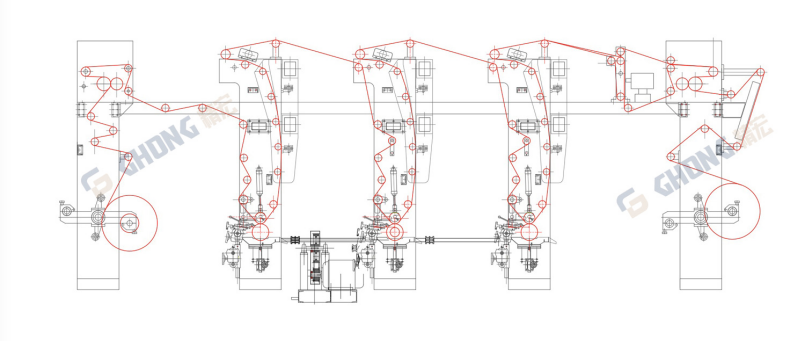

Structure chart
